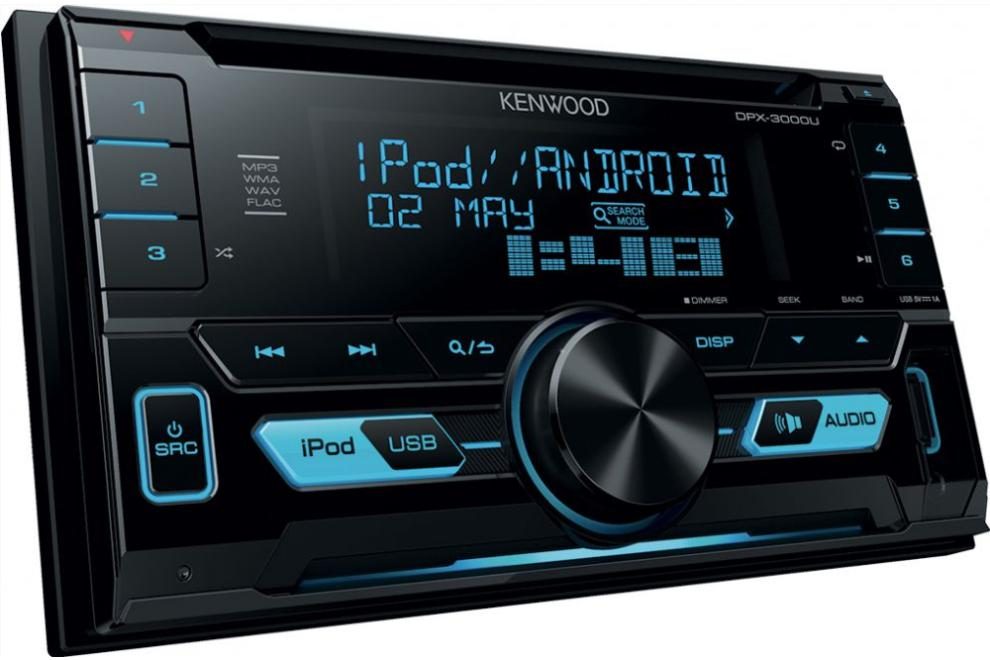

Kenwood DPX-3000U

Kenwood DPX-3000U – 2 DIN Autorádio s CD a USB prehrávačom…

Vlastnosti

• Kenwood DPX-3000U – 2DIN autorádio s CD a USB prehrávačom Veľký 1.5 riadkový LCD display
• Možnosť zvoliť si vlastné farebné podsvietenie
• ipod, iphone a Android Direct Music Control cez USB
• podpora MP3, WMA, WAV, FLAC
• Výkon 4x50W max output & 2 preouts (2,5V)
• Predný AUX-in & USB
• 3-band Easy Equalizér s 8 prednastaveniami
• Low-pass filter
• Speaker size control

Parametre

General Features

• DIN Size: 2 DIN
• Key Illumination: Variable LED
• Rotary Encoder & Control Knob: Yes
• Music Search function: Yes
• Back-up Memory: Radio presets
• Touch Sensor Tone: Yes
• Digital Clock (24H): Yes
• Built-in Connector: Molex 16 pin
• ISO connector: Yes
• USB interface x 1: Yes
• Firmware upgreadable: Yes

Display Features

• Display Type: NEW VA-type LCD
• Display Layout: 13Seg. X 13 Digit / 1,5 line
• Display Illumination: Variable by RGB LED
• Variable Illumination: Yes
• Dimmer Control: Manual / Set by Timer
• Brightness control: 0 – 31 steps
• Colour control: Yes
• Colour tint control: Yes
• Display Off Mode: Yes
• Demo Mode: Yes
• Menu text in selectable language: English, Spanish, Russian
• TAG Language Display: English, Spanish, Russian, Greek & Turkish

Cosmetics features

• Volume & operation knob or wheel: Chrome Plated
• Preset key finish: Piano Black
• Escutcheon finish: Black Injection
• Triangle Illumination: Red
• Volume & operation knob illumination: Variable
• Front terminals illumination: Variable
• Key illumination: Variable by RGB LED
• Illumination of USB & AUX terminals: Variable
• Display illumination: Variable by RGB LED
• Brightness Control (Key): yes
• Brightness Control (Display): 0 – 31 step
• Dimmer Control (Key): Manual / Set by Timer
• Dimmer Control (Display): Manual / Set by Timer
• Variable color illumination: Yes
• Front terminals dust cover: Yes

Tuner Features

• Radio Data System: Yes
• Radio Text Plus: Yes
• Traffic Information: Yes
• FM Reception: Yes
• AM (MW/LW) Reception: Yes
• AF Regional: Selectable: AF/AF Reg/OFF
• Local search: Yes
• Auto TP search: Yes
• Tuner Presets (FM/AM): 24 Presets (18FM / 6AM)
• Mixed preset memory (FM & AM): 6 presets
• Station Select: List
• Automatic Memory Entry (AME): Yes
• Up/Down Seek Tuning: Yes
• Tuning mode (Auto1 / Auto2 / Manual): Yes
• FM Stereo / Mono Selector: Yes
• Preset memory w/o back-up power: Yes
• Program Type Function (PTY): Yes
• PTY News: Yes
• Enhanced Other Networks Function (EON): Yes

CE_Playable Audio file

• MP3 files are playable from: CD/USB
• WMA (.wma) files are playable from: CD/USB
• WAV (.wav) files are playable from: USB
• FLAC files are playable from: USB
• CD Features
• CD-R/RW Compatible: Yes
• MP3 Playback with ID3 Tag Display: Yes
• WMA (Windows Media Audio) Playback: Yes
• CD Text Support: Yes
• D.A.C. processing: 24 bit
• 0 bit Mute: Yes

USB Features

• USB terminal: Yes, Front terminal with dust cover
• USB Type: 2.0 Full speed
• Drive Change: Yes
• Kenwood Music Control App for Android: Yes
• Android Open Accessory support (AOA):
• MP3 playback with ID3 Tag Display: Yes
• WMA (Windows Media File) playback: Yes
• WAV (Waveform Audio Format) playback: Yes
• FLAC (Free Lossless Audio Codec) playback: Yes
• Repeat/Scan/Random search: Yes
• Repeat / Random Play: Yes
• Resume play: Yes
• Time code display: Yes
• 1,5A charge (BC 1.2): Yes

iPod Features

• Made for iPod & iPhone *: Yes
• USB Direct Control: with optiona cable KCA-iP102 (40pin) or iP103 (Lightning connector)
• Music playback: Yes
• Music library search: Yes
• Alphabet search: Yes
• Control by hand: Yes
• Aupeo! App Link: Yes
• Reverse browsing: Yes
• Works with iPod Classic *: 80G/120G/160G
• Works with iPod Touch *: 2nd/3rd/4th/5th generation
• Works with iPod Nano *: 3rd/4th/5th/6th/7th generation
• Works with iPhone *: 3G/3GS/4/4S/5/5S/5C/6/6Plus
• Battery charge + power control: Yes
• * Always update to latest Apple firmware

Audio Features

• Maximum Output Power: 50W x 4
• MOSFET Power IC: Yes
• Pre-out: 2 RCA
• Pre-out Output Level: 4V
• Subwoofer Reference Level Adj.: Yes
• Tone Control / Easy EQ: 3-Band, 8 Presets
• Loudness Control: Off/Low/High
• Bass Boost Circuit: Off/+1/+2/+3/+4/+5
• System Q: Preset EQ
• Low-pass Filter: Yes
• Kenwood Sound Reconstruction: Yes
• Drive EQualizer: Yes

Connectivity

• Front USB & AUX Input: Yes
• OEM Wired Remote Control: Yes
• DC-Cord: Molex to ISO
• Power Control (P.CON) wire: Yes
• 2-way (Tel/Navi) mute wire: Yes
• FM Antenna Input: Yes

Tuner Specifications

• FM range: 87.5Mhz – 108MHz (50Khz step): Yes
• FM Usable Sensitivity: 0.71μV/75ohm (S/N 26dB)
• FM Quieting Sensitivity: 2μV/75ohm (S/N 26dB)
• FM Signal to noise ratio (Mono): 64dB
• FM Stereo Separation (1kHz): 40dB
• MW range: 531kHz – 1611kHz (9kHz step): Yes
• MW Usable Sensitivity: 28.2μV
• LW range: 153kHz – 279kHz (9kHz step): Yes
• LW Usable Sensitivity: 50μV

CE_CODEC_Specs

• MP3 Format: MPEG 1/2 Audio Layer 3-Files
• WMA Format: in accordance with Windows Media Audio
• WAV Format: RIFF waveform Audio Format (only for LinearPCM)
• FLAC Format: FLAC files (up to 48kHz/16bit)

CD Specifications

• Laser Diode: GaAIAs
• Digital Filter(D/A): 8 Times Over Sampling
• Digital/Analogue Converter: 24 Bit
• Wow & Flutter: below measurable limit
• Frequency Response: 20Hz ~ 20kHz (±1dB)
• Total Harmonic Distortion: 0.01% (1kHz)
• Signal to Noise Ratio: 105dB (1kHz)
• Dynamic Range: 90dB
• Channel Separation: 85dB
• MP3 Decoder: Compliant with MPEG-1/2 Audio Layer
• WMA Decoder: Compliant with Windows Media Audio

USB Specifications

• USB Version compatibility: USB 1.1/2.0 full speed
• File System: FAT 32/16/12
• Maximum Supply current: 1500mA
• MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode: Compliant with Windows Media Audio
• WAV Decode: Linear – PCM Files
• flac Decode: FLAC files up to 48kHz/16bit

Audio Specifications

• Maximum Power: 50W x 4
• Output Power (DIN45324,+B=14.4v): 22W x 4
• Preout Level: 2500mV / 10kOhm,
• Preout Impedance: ≤ 600Ohm
• Speaker Impedance: 4Ohm ~ 8Ohm
• AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
• AUX Maximum Input Voltage: 1000mV
• AUX Input Impedance: 30kOhm
• Bass Tone Control: 100Hz ±8dB
• Middle Tone Control: 1kHz ±8dB
• Treble Tone Control: 12.5kHz ±8dB

Accessories

• Release keys: 2 pieces
• Escutcheon: Yes
• Installation Sleeve: Yes
• DC cord (Molex to ISO): 25 cm
• Multi-Language Instruction Manual Included: Quick-Guide
• Manuals Downloadable: Yes

General Specifications

• Operating voltage: 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption: 10A
• Dimensions (WxHxD): 182 x 111 x 158mm
• Weight: 1600gr
• Operation Temperature Range: -10°C ~ 60°C
